SPT (Standard Penetration Test) in Newcastle NSW

Newcastle sits on one of Australia's most varied geological settings—the Newcastle Coal Measures, with interbedded sandstone, siltstone, and coal seams mapped since the 1880s. The 1989 earthquake was a turning point, rewriting how engineers assess soil behaviour across the Hunter. SPT blows tell the real story underground. We run the Standard Penetration Test on commercial and infrastructure projects citywide, from Hamilton to Mayfield, delivering N-values and disturbed samples that feed directly into bearing capacity calculations and liquefaction screening. Combined with our CPT testing for continuous profiling, the SPT remains the backbone of local site characterisation because it pairs dynamic resistance with visual recovery—something no push-rig alone can give you in Newcastle's layered ground.

N-values alone are not a design parameter. The judgment comes from interpreting them against the Newcastle Coal Measures and the 1989 liquefaction record.

Scope of work

The city's post-earthquake building boom pushed development onto challenging sites—reclaimed waterfront at Honeysuckle, residual colluvium on the Merewether slopes, and former mine workings in the suburbs. That history means you cannot rely on a single N-value profile without understanding the context. Our SPT rigs operate to AS 1726, with calibrated 63.5 kg hammers and rope-and-cathead procedures that meet energy correction requirements. We log recovery, drilling fluid loss, and penetration resistance every 1.5 metres. For deeper strata where split-spoon refusal occurs before reaching bedrock, we switch to SPT drilling with rotary coring to confirm refusal depth. Where collapsible fill is suspected—common in older Newcastle subdivisions—we also pair SPT results with Atterberg limits to flag moisture-sensitive silts that swell and shrink with Hunter rainfall patterns.

Area-specific notes

A 9-storey mixed-use development on Hunter Street encountered fill over soft estuarine clays at 4.2 metres. The initial SPT logs showed N=3–5 blows in the clay layer—values that triggered a full liquefaction assessment given the site's proximity to the mapped Throsby Creek paleochannel. Without that early identification, the foundation concept would have understated settlement by a factor of three. Newcastle's seismic hazard is real: the 1989 M5.6 event caused $4 billion in damage, and AS 1170.4 now assigns a hazard factor Z=0.08–0.11 for the region. SPT refusal on shallow rock—common in the Merewether and Bar Beach ridge—can also mislead contractors unfamiliar with the Newcastle Coal Measures. We flag refusal when the blow count exceeds 50 for 150 mm of penetration, then switch to coring to confirm bedrock depth.

Technical parameters

Parameter	Typical value
Hammer type	63.5 kg automatic trip / rope-and-cathead (energy calibrated)
Drill bit	NX or NW casing with tricone or drag bit per ground conditions
Sampling interval	1.5 m depth increments (standard); 1.0 m on critical liquefaction profiles
Sample recovery	Split-spoon 50 mm OD; logged as % recovery and RQD where applicable
N-value correction	N60 energy correction + overburden correction to N1(60) per Youd-Idriss 2001
Liquefaction screening	Seed-Idriss simplified procedure; input to CLiq or manual calculation
Reporting standard	AS 1726-2017; borehole logs with SPT-N, recovery, groundwater, and lithology

Linked services

SPT Drilling and Sampling

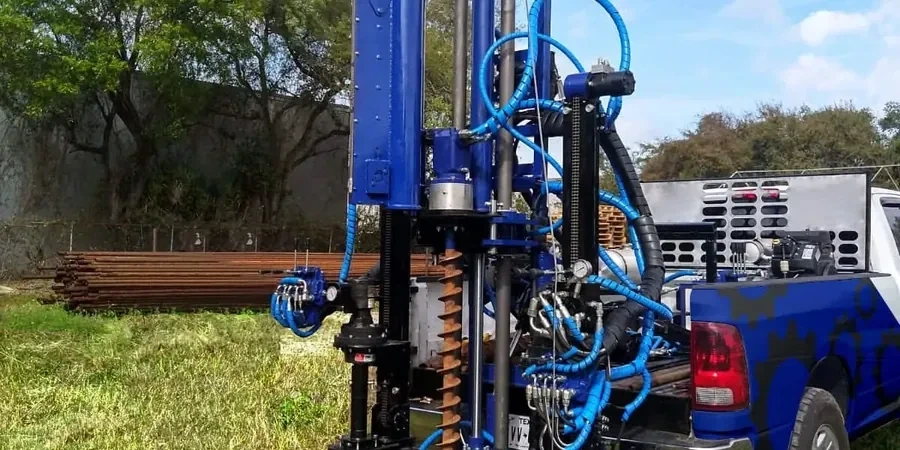

Truck-mounted and track-mounted drill rigs deployed across Newcastle, Lake Macquarie, and the Lower Hunter. Standard 1.5 m SPT intervals with split-spoon sampling, groundwater monitoring, and AS 1726 borehole logs delivered within five working days of field completion.

Liquefaction Assessment

N1(60) corrected blow counts, fines content from companion lab testing, and Seed-Idriss simplified procedure applied to your site. We map factor of safety against liquefaction for each critical layer, referencing the 1989 Newcastle event and the updated AS 1170.4 seismic demand.

Foundation Parameter Derivation

From SPT-N to allowable bearing pressure, settlement estimates, and spring stiffnesses for structural modelling. We apply published correlations (Meyerhof, Bowles, Burland & Burbidge) calibrated to Newcastle's residual soils and weathered rock, not generic textbook values.

FAQ

How much does an SPT investigation cost in Newcastle?

SPT borehole programmes in the Newcastle area typically range from AU$790 to AU$1,280 per borehole, depending on depth, access constraints, and whether track-mounted or truck-mounted rigs are required. Mobilisation across the Hunter is quoted separately after a site walkover.

How deep do SPT boreholes go for a typical Newcastle project?

For low-rise residential footings on the Merewether ridge, 6–9 metres is common. Mid-rise commercial work in the CBD and Honeysuckle precinct often goes to 15–25 metres. We stop at practical refusal on rock—typically less than 20 metres where the Newcastle Coal Measures sandstone is encountered.

Can SPT results be used for liquefaction assessment in Newcastle?

Yes. The Seed-Idriss simplified procedure uses corrected SPT N1(60) values as the primary input. Given Newcastle's 1989 earthquake history and the AS 1170.4 hazard factor, SPT-based liquefaction screening is standard practice for sites with saturated sands and silts below the water table.

What is the difference between SPT and CPT for Newcastle ground conditions?

SPT provides a disturbed soil sample you can see and classify visually, which matters in the Coal Measures where thin coal seams and clay bands can be missed by CPT pore-pressure readings alone. CPT gives continuous profiling without sampling. We use both: SPT for recovery and identification, CPT for stratigraphic detail between SPT intervals.
